Nomex Filter Bag Specification
1. Introduction
- Overview of industrial filtration
- Importance of choosing the right filter bag material
- Introduction to Nomex filter bags and their applications
2. What is a Nomex Filter Bag?
- Description of Nomex material
- How Nomex filter bags are made
- Key properties of Nomex material
3. Importance of Using Nomex Filter Bags
- High-temperature resistance
- Chemical resistance
- Durability and longevity
4. Common Applications of Nomex Filter Bags
- Industries using Nomex filter bags
- Specific processes where Nomex is ideal
- Case studies or examples
5. Technical Specifications of Nomex Filter Bags
- **Material Composition**
- Breakdown of Nomex fabric properties
- Weight and thickness
- **Temperature Resistance**
- Operating temperature range
- Maximum peak temperature
- **Filtration Efficiency**
- Micron ratings available
- Dust collection efficiency
- **Physical Properties**
- Strength and elongation
- Air permeability
- **Chemical Resistance**
- Resistance to acids and alkalis
- Compatibility with various gases
6. Design Variations of Nomex Filter Bags
- Different shapes and sizes
- Common configurations: Pulse jet, shaker, reverse air
- Types of closures and seams
7. Advantages of Nomex Filter Bags Over Other Materials
- Comparison with polyester and polypropylene filter bags
- Cost vs. performance analysis
- Lifespan comparison
8. Factors to Consider When Choosing a Nomex Filter Bag
- Operating environment
- Type of particulate matter
- System design and baghouse type
9. Installation and Maintenance Tips
- Best practices for installing Nomex filter bags
- Routine maintenance and inspection
- Troubleshooting common issues
10. Environmental and Safety Considerations
- Handling and disposal of used filter bags
- Compliance with environmental regulations
11. Cost and Availability
- Pricing factors
- Availability in the market
- Suppliers and manufacturers
12. Case Studies and Real-World Applications
- Examples from various industries
- Benefits realized in real-world scenarios
13. Future Trends in Filter Bag Technology
- Innovations in filter media
- Emerging applications for Nomex filter bags
14. How to Order Custom Nomex Filter Bags
- Customization options
- Working with suppliers for tailored solutions
- Steps to place an order
15. Conclusion
- Summary of key points
- Final thoughts on the importance of choosing the right filter bag
16. FAQs
- What is the maximum temperature Nomex filter bags can handle?
- How do I know if Nomex is the right material for my application?
- Can Nomex filter bags be used in food processing?
- How often should I replace my Nomex filter bags?
- Where can I buy Nomex filter bags?
---
Nomex Filter Bag Specification: A Comprehensive Guide
Introduction
In the realm of industrial filtration, choosing the right filter bag is crucial for ensuring optimal performance and compliance with environmental standards. Among the many options available, Nomex filter bags stand out for their exceptional heat resistance, durability, and filtration efficiency. But what exactly are Nomex filter bags, and what makes them so special? This guide delves into the specifications, applications, and benefits of using Nomex filter bags, providing you with everything you need to make an informed choice for your filtration needs.

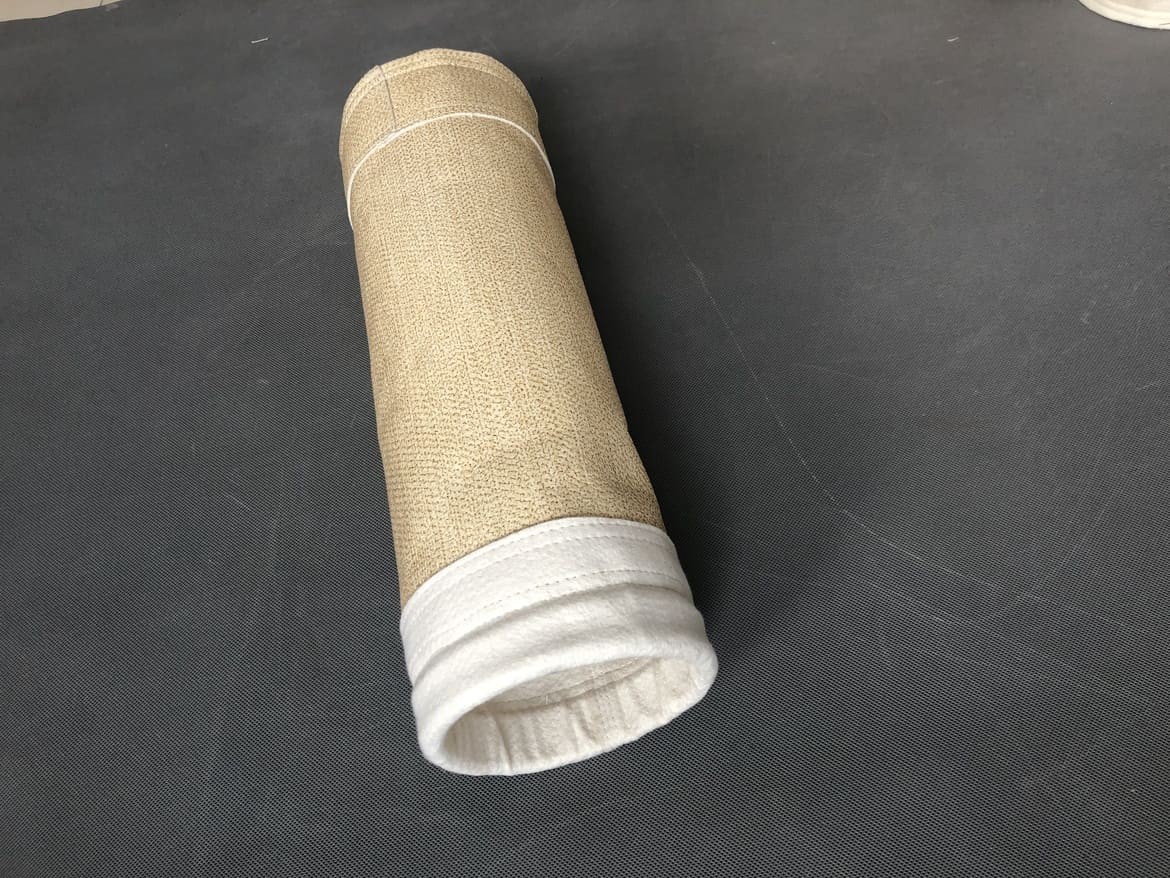

What is a Nomex Filter Bag?
Nomex filter bags are made from a synthetic fiber known as Nomex, a brand name for a heat- and flame-resistant aramid material developed by DuPont. Nowadays there are many nomex fibers in the market, and ofcourse different factory products has different quality. Vision filter always insist on use the top grade nomex fibers by DuPont. The filter bags are designed to withstand harsh conditions, especially those involving high temperatures and chemical exposure. The manufacturing process involves weaving or felting Nomex fibers into nomex needle punched felt that can be tailored into various shapes and sizes to fit specific filtration systems.
Key Properties of Nomex Material:
- Heat Resistance: Nomex can withstand continuous operating temperatures up to 400°F (204°C) and peak temperatures as high as 500°F (260°C).
- Chemical Stability: It exhibits excellent resistance to acids and alkalis, making it suitable for a wide range of industrial applications.
- Mechanical Strength: Nomex fabric offers high tensile strength and flexibility, contributing to the longevity of the filter bags.
Importance of Using Nomex Filter Bags
One of the primary reasons industries opt for Nomex filter bags is their ability to handle high temperatures without degrading. This makes them ideal for applications such as cement manufacturing, steel production, and power generation, and asphalt plants, rubber factory etc where the operating environment can be extremely demanding.
High-Temperature Resistance:
Nomex filter bags maintain their integrity and filtration efficiency even in environments where temperatures exceed the limits of other materials like polyester felt or polypropylene filters. This resistance to thermal degradation ensures a longer lifespan and reduces the frequency of replacements.
Chemical Resistance:
In addition to their heat tolerance, Nomex filter bags are resistant to a wide range of chemicals, including acids, alkalis, and organic solvents. This makes them a versatile choice for processes involving corrosive substances.
Durability and Longevity:
The inherent strength of Nomex fibers allows these filter bags to endure mechanical stress and repeated cleaning cycles, extending their service life and reducing maintenance costs. Our nomex filter bags can has a working life of 3 years at least because we use Dupont nomex fibers. In China, many nomex filter bags can only use for about one year, but their price is also very cheap.
Common Applications of Nomex Filter Bags
Nomex filter bags are utilized across various industries due to their unique properties. Some common applications include:
- Cement Industry: For dust collection in kilns and clinker coolers.
- Steel and Metal Processing: For capturing particulate matter in high-temperature furnaces.
- Power Plants: For controlling emissions in flue gas desulfurization systems.
- Chemical Processing: For filtering out fine particulates in processes involving acidic or alkaline gases.
Real-world examples showcase how Nomex filter bags have improved operational efficiency and reduced downtime in these demanding environments.
Technical Specifications of Nomex Filter Bags
Understanding the technical specifications of Nomex filter bags is key to selecting the right product for your needs. Here are some of the most critical aspects:
|
Nomex Needle Punched Felt |
||
|
Model |
NM500 |
|
|
纤维成分 Fibre Composition |
100% Nomex fiber |
|
|
针刺毡基布 Scrim Composition |
NOMEX |
|
|
克重（g/m2） Felt Area Weight |
500±10 |
|
|
厚度（mm） Thickness |
2.0 |
|
|
断裂强度 （N5×20cm） Breaking Strength |
经向MD |
1030±15% |
|
纬向CMD |
1450±15% |
|
|
透气量（L/M2） |
220-290 |
|
|
持续使用温度（℃） Recommended Maximum Continuous |
204 |
|
|
瞬间使用温度（℃） Recommended Maximum Surge |
250 |
|
|
后处理 Finish |
Water & oil proof |
|
|
Strong alkalis resistance |
Fair |
|
|
Weak alkalis resistance |
Good |
|
|
Strong acids resistance |
Fair |
|
|
Wesk acids resistance |
Good |
|
|
Solvents resistance |
Fair |
|
|
Oxidation resistance |
Fair |
|
|
Hydrolyses resistance |
Good |
|
Material Composition
Nomex is a meta-aramid fiber with high crystallinity, providing excellent thermal stability and resistance to mechanical wear. Typical Nomex filter bags have a felted fabric construction, with a weight ranging from 14 to 18 ounces per square yard, depending on the application.
Temperature Resistance
Nomex filter bags are designed to operate continuously at temperatures up to 400°F (204°C) and can withstand short-term spikes up to 500°F (260°C). This makes them suitable for environments with fluctuating or consistently high temperatures.
Filtration Efficiency
The filtration efficiency of Nomex filter bags is influenced by the micron rating of the fabric. These bags can capture particles as small as 5 microns, making them effective for controlling fine dust and fumes.
Physical Properties
Nomex filter bags typically exhibit high tensile strength, with values up to 1,000 N/5 cm, and good elongation properties, ensuring they can endure the physical stresses of pulse-jet or shaker cleaning systems.
Chemical Resistance
Nomex is resistant to most acids and alkalis, though it can degrade in the presence of strong oxidizing agents or hot sulfuric acid. This should be considered when selecting filter bags for specific chemical environments.
Design Variations of Nomex Filter Bags
Nomex filter bags come in various shapes and sizes to fit different filtration systems. Some common configurations include:
- **Pulse Jet Filter Bags:** Designed for high-efficiency pulse jet cleaning systems, typically with a snap band or flange.
- **Shaker Filter Bags:** Suitable for mechanical shaker systems, usually featuring a loop top or grommet for secure attachment.
- **Reverse Air Filter Bags:** For use in reverse air systems, often with a cuff or beaded cuff design for a secure fit.
Different closure options, such as snap bands, corded cuffs, and rings, help ensure a proper seal and minimize leakage.
Advantages of Nomex Filter Bags Over Other Materials
Nomex filter bags offer several advantages over other filter bag materials like polyester, polypropylene, and PTFE.
- Temperature Tolerance: Unlike polyester filters and polypropylene, Nomex can handle high temperatures without melting or breaking down.
- Chemical Resistance: Nomex outperforms polyester in chemical resistance, making it a better choice for harsh environments.
- Cost-Effectiveness: While PTFE offers superior chemical resistance and temperature tolerance, Nomex is more cost-effective for many applications.
Factors to Consider When Choosing a Nomex Filter Bag
When selecting a Nomex filter bag, it's essential to consider:
- Operating Environment: High temperatures, chemical exposure, and particulate properties.
- Type of Particulate Matter: Size, abrasiveness, and chemical composition of the dust or fumes.
- System Design: Compatibility with your baghouse type and cleaning mechanism.
These factors will help you choose the right filter bag for optimal performance and longevity.
Installation and Maintenance Tips
Proper installation and maintenance are crucial for the performance and lifespan of Nomex filter bags.
Installation Tips:
- Ensure a tight seal to prevent leaks.
- Avoid excessive stretching or compression during installation.
- Check for damage before use.
Maintenance Tips:
- Inspect bags regularly for wear or damage.
- Clean bags according to manufacturer recommendations.
- Replace bags when efficiency drops or damage is visible.
Environmental and Safety Considerations
Disposing of used filter bags must be done responsibly. Many Nomex filter bags can be incinerated safely due to their heat-resistant properties, but it's important to follow local regulations regarding the disposal of hazardous materials.
Cost and Availability
The cost of Nomex filter bags can vary based on factors such as size, configuration, and the specific requirements of your application. However, the investment is often offset by the long-term savings from reduced downtime and maintenance.
Nomex filter bags are widely available from various suppliers and manufacturers. It's advisable to work with a reputable supplier to ensure you receive a high-quality product that meets your specifications.
Case Studies and Real-World Applications
Several industries have reported significant benefits from switching to Nomex filter bags, including improved filtration efficiency, reduced emissions, and lower maintenance costs. For example, a cement plant that switched to Nomex filter bags saw a 30% reduction in baghouse downtime and maintenance costs.
Future Trends in Filter Bag Technology
As industries continue to demand more efficient and durable filtration solutions, innovations in filter media technology are expected. Future developments may include hybrid materials that combine the properties of Nomex with other fibers to enhance performance in extreme conditions.
How to Order Custom Nomex Filter Bags
For specialized applications, custom Nomex filter bags can be manufactured to meet specific requirements. When ordering custom bags, consider:
- Dimensions and Design: Provide precise measurements and configurations.
- Performance Requirements: Specify temperature, chemical resistance, and filtration efficiency needs.
- Collaborate with Suppliers: Work closely with your supplier to ensure the bags meet your exact specifications.
Or you can send us the sample directly, we can produce accoding to your samples.
Conclusion
Nomex filter bags are a reliable choice for high-temperature and harsh chemical environments, offering durability, efficiency, and cost-effectiveness. Understanding the specifications and benefits of these filter bags can help you make an informed decision for your industrial filtration needs.
FAQs
1. **What is the maximum temperature Nomex filter bags can handle?**
Nomex filter bags can withstand continuous operating temperatures up to 400°F (204°C) and peak temperatures up to 500°F (260°C).
2. **How do I know if Nomex is the right material for my application?**
Consider the operating temperature, chemical environment, and particulate characteristics. Nomex is ideal for high-temperature and chemically harsh environments.
3. **Can Nomex filter bags be used in food processing?**
While Nomex offers excellent heat and chemical resistance, it is not typically used in food processing due to potential contamination risks. Food-grade materials are recommended for such applications.
4. **How often should I replace my Nomex filter bags?**
Replacement frequency depends on the application and operating conditions. Regular inspections can help determine when replacement is necessary, typically every 1-3 years.
5. **Where can I buy Nomex filter bags?**
Nomex filter bags are available from various industrial filtration suppliers. It's best to consult with a reputable supplier to ensure you get the right product for your needs.
