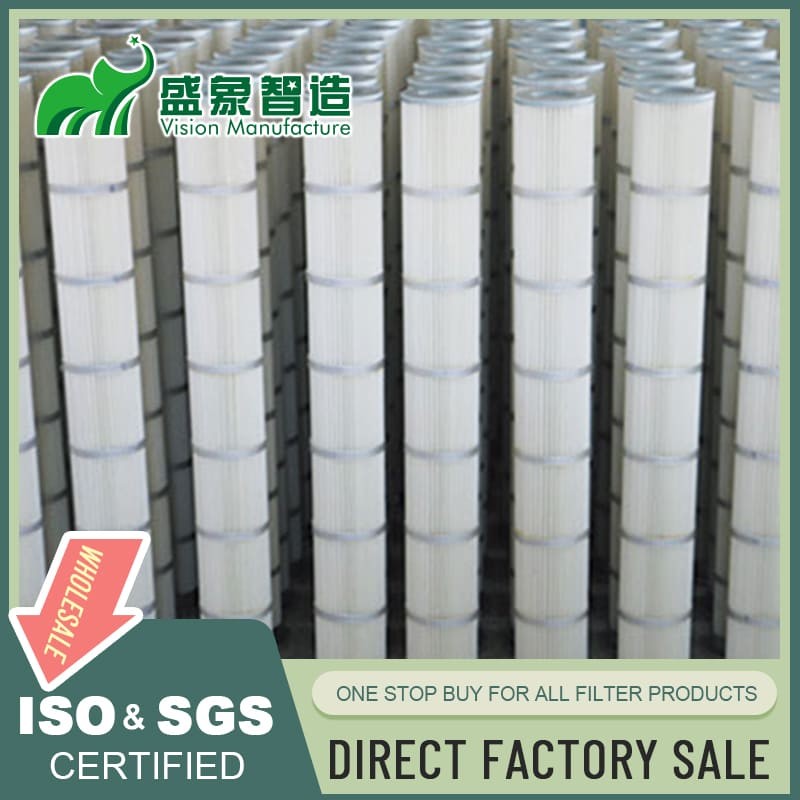

Steel top loader pleated bag filter
Open top loader, closed bottom, with assemble hole; Galvanized anti-rust metal components; Quality rubber seal;
Steel top loader pleated bag filter
Performance specification:
1. Shallow pleated filter design, easy to de-dust, high efficiency filtration; triple filter area compared with nomal dust filter bags;
2. Multiple choice for flange installation;
Selection of filter media:
1. Standard BY2 polyester fiber(white/black); BY2A antiflaming polyester fiber;
2. BY2B water&oil proof polyester fiber; BY2CD anti-static polyester fiber media; BY2F PTFE membrane polyester fiber media;
Steel top loader pleated bag filter TDS
| Model no. | Filter medium | Top cover flange outside dia. mm | Top flange dia. mm | Height mm | Filter area ㎡ |
| BY/P1266-200 | BY2/BY2A/BY2B/BY2CD/SJ2F | A+60-80 | 120 | 660-200 | 1.25-4.0 |
| BY/P1566-200 | BY2/BY2A/BY2B/BY2CD/SJ2F | A+60-80 | 150 | 660-200 | 1.53-4.6 |
| BY/P2066-200 | BY2/BY2A/BY2B/BY2CD/SJ2F | A+60-80 | 200 | 660-200 | 2.0-60 |
| BY/P1466-200 | BY2/BY2A/BY2B/BY2CD/SJ2F | Φ162plate hole | 146 | 660-200 | 1.53-4.6 |
Application:
Cement, electronics, foundry etc industry with heacy dusts;
It replace all branded filter cartridge like Donaldson, Ketter, Nederman, Coral etc, OEM service is also available for us.
