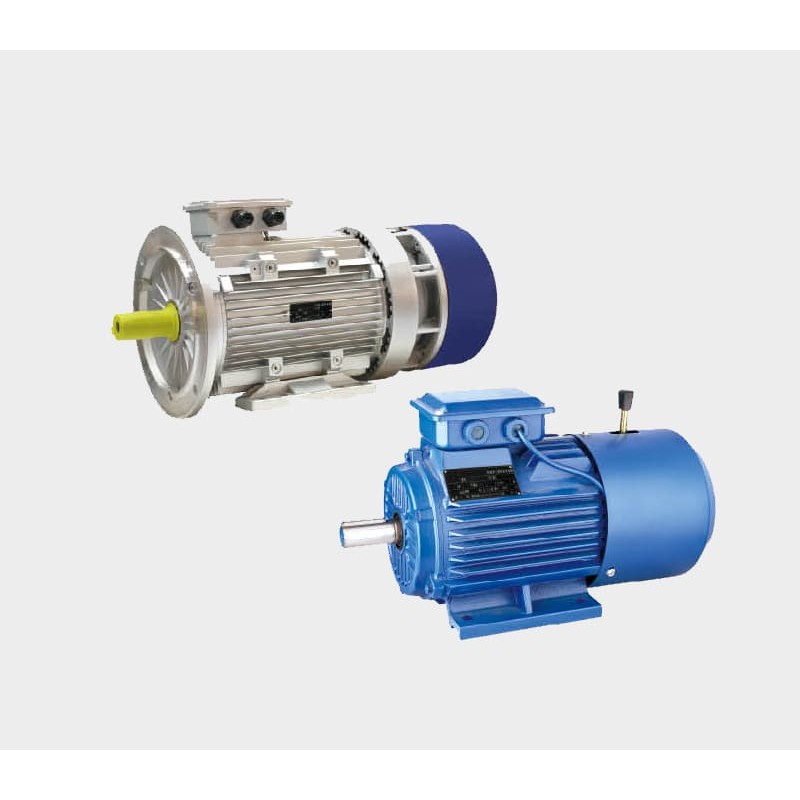

YEJ series electromagnetic brake motor

YEJ series electromagnetic brake motor is an improved product of YEJ series, which meets the requirements of national standard JB/T6456-2010, and the electrical performance meets the technical standards of YE2 series motor.

This series of brake motor is equipped with electromagnetic brake at the non-dragging shaft end of the motor, when the motor is de-energized, the brake disc of the electromagnetic brake is automatically pressed together with the back cover of the motor to produce friction braking force cabinet, so that the motor stops, and the no-load braking time is randomized from the smallest to the largest seat number, which is 0.15~0.45 S. The power supply of the brake must be the dragging motor. Power synchronization. YEJ2 series motors are widely used in machining machine tools and conveying machinery and packaging, woodworking, food, chemical, textile, construction, store, rolling door and other mechanical role of driving force

Usage conditions:

Machine base center height: 63~160mm

controller power supply: AC 220V (99V after rectification)

machine base center height H≤100mm

 machine base center height: H≥112mm

AC 380V (170V after rectification)

Power range: 0.12-45kW

Rated voltage: 380V (other voltages are subject to separate agreement)

Rated frequency: 50Hz (or 60Hz)

Protection level: IP54 (or IP55)

Insulation level: B/F class

Working system: S1
