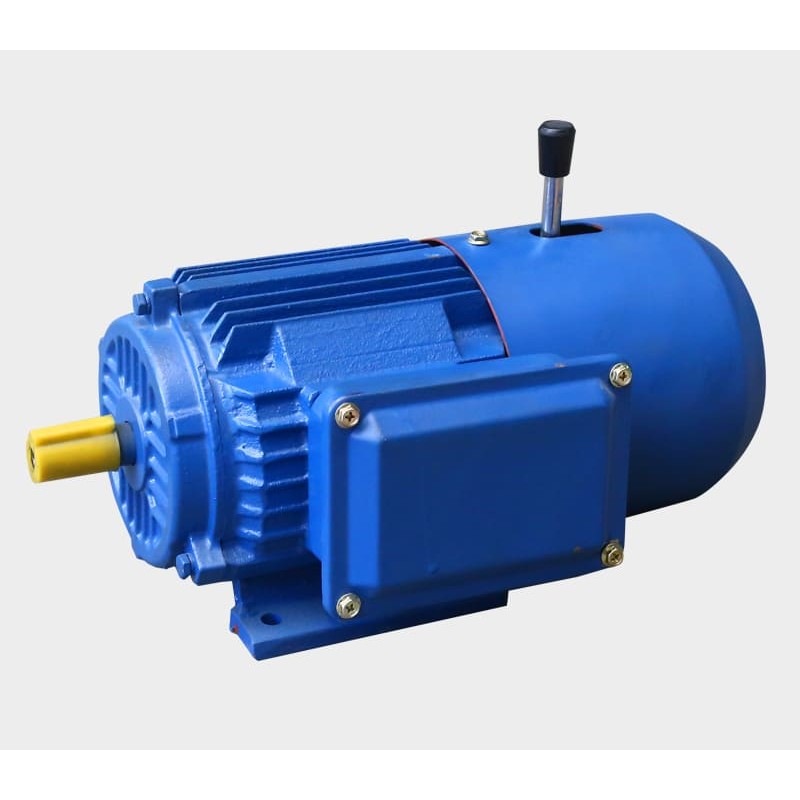

YEJ2 series electromagnetic brake motor

YEJ2 series electromagnetic brake motor is the newest product which uses high quality raw materials and the latest overall design of fully enclosed self-fanning squirrel-cage three-phase asynchronous AC motor with electromagnetic direct braking according to the relevant regulations of the International Electrotechnical Commission (IEC).

Ask for Price

Description
Product Details

This kind of motor is equipped with movable base to adapt to a variety of installation forms; it has the advantages of beautiful appearance, solid structure, high efficiency, low noise, low vibration, and so on. The braking is divided into two kinds: manual and electric (if use frequency converter to start and run need to be customized).

Technical specifications for the YEJ2 Series Electromagnetic Brake Motor:

- **Type**: Three Phase Electromagnetic Brake Motor.

- **Efficiency Level**: High efficiency energy saving.

- **Frame Size**: 63~315 frame.

- **Rated Output**: 0.12~200kW.

- **Rated Voltage**: 220V, 380V, 400V, 415V, 440V, 460V, 480V, 550V.

- **Number of Poles**: 2, 4, 6, 8, 10 Pole.

- **Rated Frequency (Speed)**: 50Hz (Synchronous speed 3000/1500/1000/750/600 r/min), 60Hz (Synchronous speed 3600/1800/1200/900/720 r/min).

- **Mounting Methods**: B14, B3, B34, B35, B5, V1.

- **Material of Housing**: Cast iron (160 frame and below can be alloy-aluminum).

- **Insulation Class**: F (155℃).

- **Temperature Rising**: ΔT=80°K (B class).

- **Braking Time**: YEJ2-63-90 motor quick brake time is less than 0.15s and YEJ2-10-160 motor is less than 0.20s.

- **Voltage of Electromagnetic Brake**: DC 99V for YEJ brake motor power is less than 4kW. DC 170V for YEJ brake power is 4kW and above.

- **Applications**: Widely used for machinery that request rapid braking, accurate positioning, reciprocating motion, frequent starting and braking, as the main drive and auxiliary transmission.
