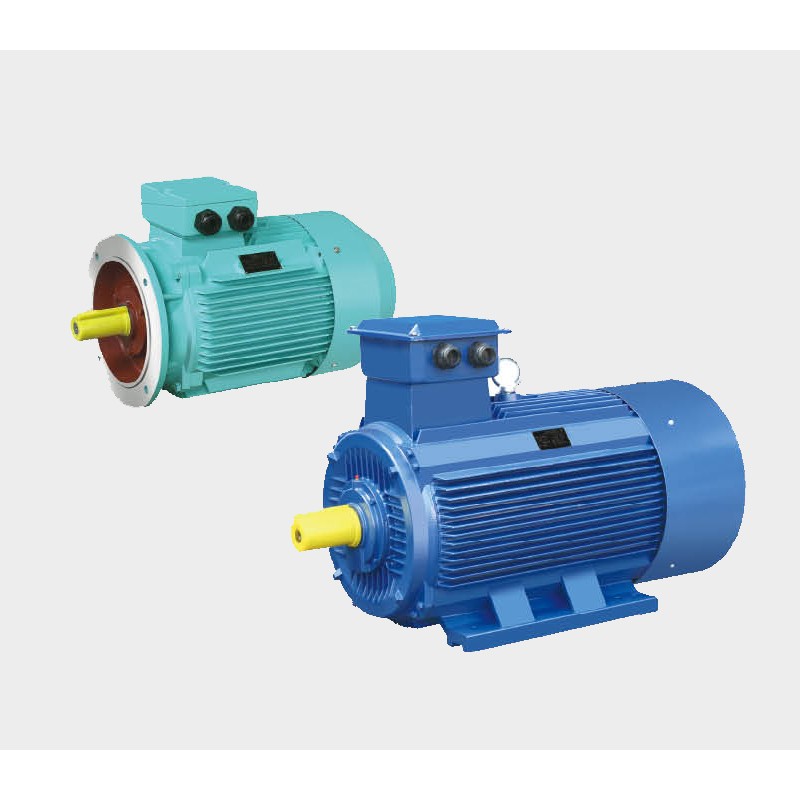

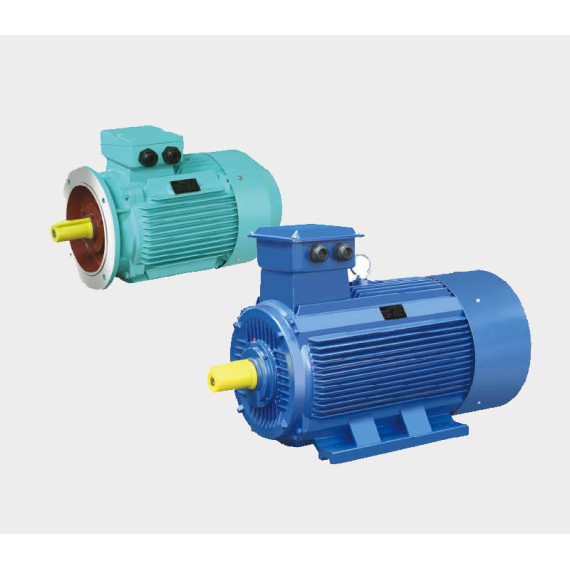

IE2Y2 series three-phase asynchronous motor

At the same time, it conforms to the latest national STANDARDJB/T11707-2013 industry standard and IEC60034-30-2008 energy efficiency class standard of IE2. Its improved high-efficiency design meets the national requirement of energy saving and consumption reduction put forward for the production and manufacturing industries.

The installation dimensions of Y2 series motors are in accordance with IEC60034 standard. It has the advantages of reasonable structure, beautiful appearance, high efficiency, low noise, high protection level, insulation level, etc. It can be widely used in fans, pumps, machine tools, compressors, transportation machinery and other drive a variety of general-purpose machinery and equipment, but also in the petroleum, chemical industry, iron and steel, mines, and other places where the environment is relatively harsh to use.

Application Conditions:

Ambient temperature: -15℃≤0≤40℃.

Altitude: not more than 1000m

Rated voltage: 380V, any voltage value between 220-760V is optional.

Rated frequency: 50Hz, 60Hz

Protection grade: IP55

Insulation grade: F class, H class

Cooling method: IC411

Working mode: S1

Connection: Y connection for 3kw and below, △ connection for 4kw and above.
